Ships Plumbing

Home /  Products / Marine Furnishings /  Ships Plumbing

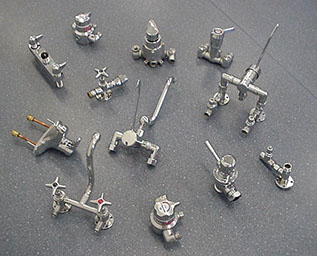

Tapware to Suit Your Needs in Service in the RAN and RNZN



Bale Defence Industries will source or manufacture tapware for your particular needs.



Bale Defence Industries can manufacture items that are not immediately available or no longer manufactured. Using the latest manufacturing techniques Bale Defence Industries can ensure you receive a superior product, designed and manufactured to your specifications.



All tapware manufactured by Bale Defence Industries is manufactured to the relevant MIL spec or DIN spec

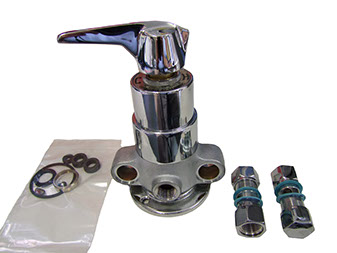

Navy Shower Mixing Valve & Spares



Codified shower mixing valve.

Fitted to marine platforms and warships.

Spare parts readily available - stem assemblies, handles with set screw, 'O' rings and seals.

Shower heads and risers to suit.

Two models to choose from.

Marine grade materials used throughout.

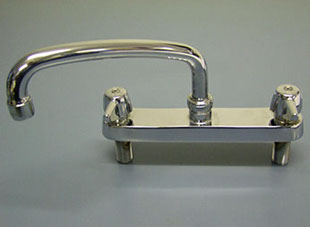

Faucet 6" and 8" Centres - Manual



Top mount faucet.

Cast brass body and female aerator.

Fitted to RAN and USN ships.

Certified to ANSI / NSF 61 Sect 9.

Spare parts available.

8" swivel spout (6" and 8")

Parameters - 8": 250mm (H) x 230mm (W) x 220mm (H) x 1.45kg.



Shower Set - Navy



Surface mounted assembly.

90/10 copper nickel pipe work.

Hot and cold tapware.

Chrome plated.

Lugged fittings.

Custom Built as per ship requirements.

Pressure tested and C/W Certificate of Conformance.

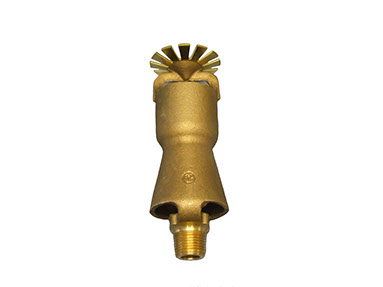

Sprinkler Head



Air aspirating foam discharge outlets used in foam water deluge systems.

Available in upright and pendent foam water sprinklers.

Designed for flammable liquid risks where is foam applied overhead.

Followed up with plain water in standard spray pattern.

Note: environment, temperature & chemicals / gas velocities must be considered.

Manufactured to Mil-H-24146.

Thread: ½” NPT, Finish: Bronze & Max. Working Pressure: 175 PSI.



Water Hammer Arrester



Sizes: ½” to 1” – maximum static pressure 10 bar.

Designed to protect shipboard water lines from pressure surges.

Standards Compliance: ANSI A112.26.1.

Pre-charged and sealed at factory.

Material: copper body, brass tail piece and buna nitrile o’ ring.

End Connections: threaded BSPT.

OH&S and Marine Plumbing - Safety Deluge Systems



Bale Defence Industries have a range of Deluge and Eyewash systems that are fully manufactured in Australia, and conform to the world recognised standard ANSI 2358.1, 1990.



Features include colour coding of significant areas in a safety colour, a radiused bowls with no sharp corners to knock in an emergency. The positive mechanical action of the foot pedal and the inclusion of stainless steel large bore flow pipes, gives the best possible product available.

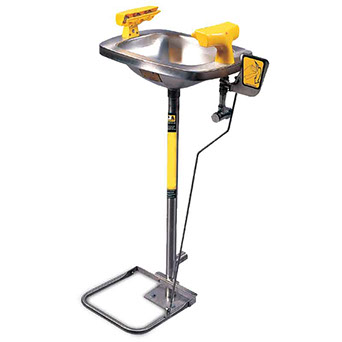

Bale Defence Industries' Eye Wash Systems have been developed to deliver a soft aerated flow of water for the removal of hazardous chemicals from the sensitive eye area. The Eye Wash System is recommended for use in light industrial areas where chemicals such as solvents, cleaners and detergents are commonly used.



Bale Defence Industries' Eye Face Wash Systems deliver a dual soft flow of water to the eye and face area, for the removal of high concentrates of chemicals such as acids, alkalis and ammonia based cleaners.

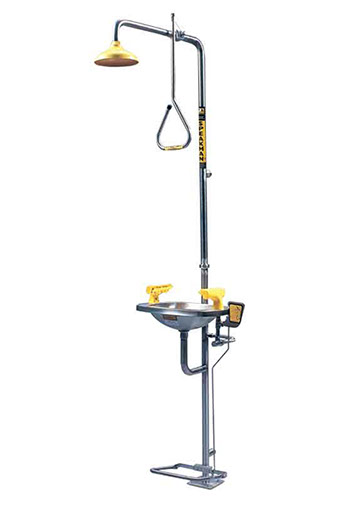

Bale Defence Industries' Deluge and Combination Systems are designed for areas in medium to heavy industry where large quantities of chemicals are used and the possibility of splashing and spills is likely to be more prominent. These chemicals include acids, solvents, detergents and cleaning fluids.
