CNC Machining

Bale Defence Industries are leaders in the application of machine tool technology. Our engineering facility has the latest in CNC manufacturing technologies with a range of 5-Axis and 3-Axis Machining Centres as well as Mill Turns and conventional Lathes.

Using this technology Bale Defence Industries continues to maintain a competitive edge in producing new and replacement parts for domestic and international clients.



Effective management, fully computerised production, and highly skilled staff combined with our flexible machining systems assure you of higher quality, lower unit cost and delivery on schedule. Quality Assurance to Lloyd's ISO 9001.



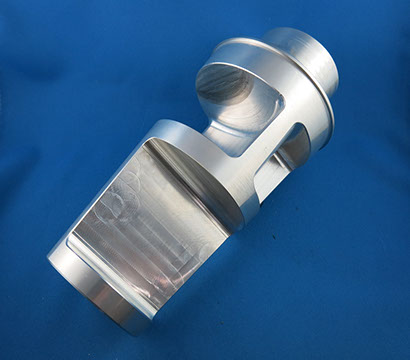

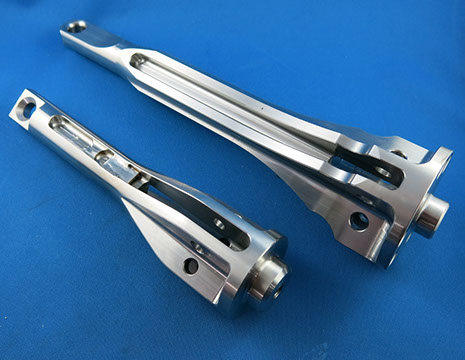

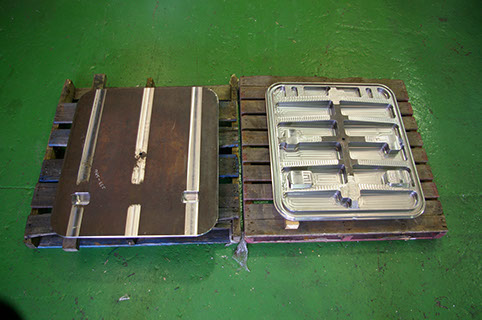

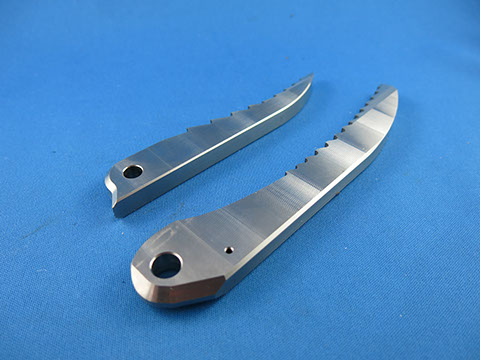

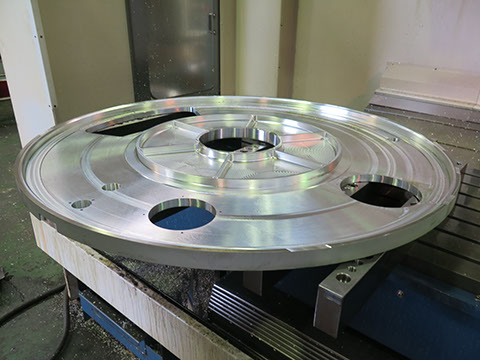

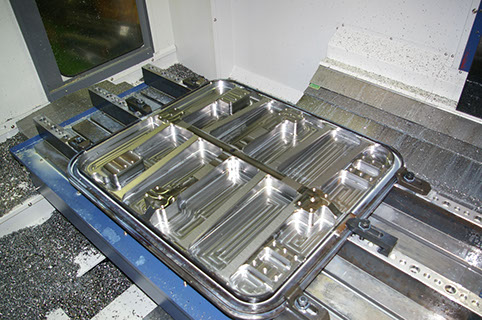

We have the capacity to produce an extensive range of parts from small, Naval fittings to heavy machine components in any material from engineering plastics to exotic alloys, in long or short production runs. Tolerances as fine as four millionths of an inch are attainable.



5-Axis Machining Centres

3-Axis Machining Centres

Mill-Turns

Lathes

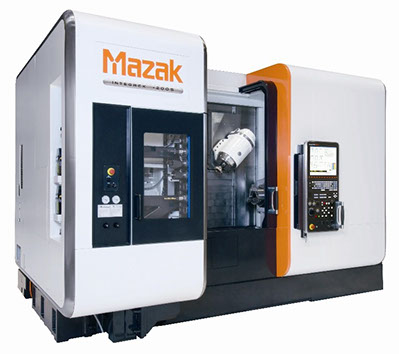

Mazak Integrex i-200s

Description

Specifications

Video

The INTEGREX i-200S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning centre and full-function machining centre to produce parts in single setups.



This machine configuration features second turning spindle to eliminate multiple setups, fixtures, tools, handling and non-cut time. Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups.



With full 5-axis capability, the machine easily processes round parts with secondary operations, fully prismatic parts from solid or castings (chucked or bar fed work), or highly contoured sculptured parts.


Specification

Values
Capacity
Maximum Swing
658 mm / 25.91 in
Maximum Between Centres
1011 mm / 39.800 in
Spindle 1 (Main)
Chuck Size
254 mm / 10 in
Spindle 2
(Secondary)
Chuck Size
200 mm / 8 in
Stroke 1066 mm / 41.97 in
Milling Spindle
B-Axis Travel
240°
Feed Axes
X-Axis Travel 615 mm / 24.21 in
Y-Axis Travel 260 mm / 10.24 in
Z-Axis Travel 1077 mm / 42.40 in

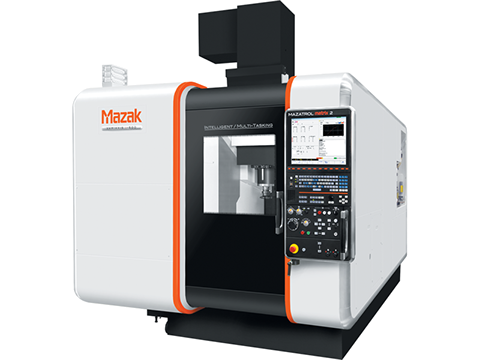

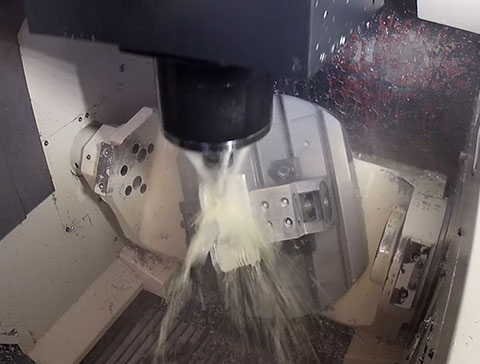

Mazak Variaxis i-500s

Description

Specifications

Video

The VARIAXIS i-500 is a highly versatile full, simultaneous 5-axis Vertical Machining Center that performs multiple and complex curved surface machining on small complex workpieces with high-precision requirements in single setups.


Specification

Values
Rotary Axes
Table Tilt (A-axis)
150 degrees
Table Indexing (C-axis)
360.0000 degrees
Feed Axes
X-Axis Travel
350 mm / 13.78 in
Y-Axis Travel 550 mm / 21.65 in
Z-Axis Travel 510 mm / 20.08 in

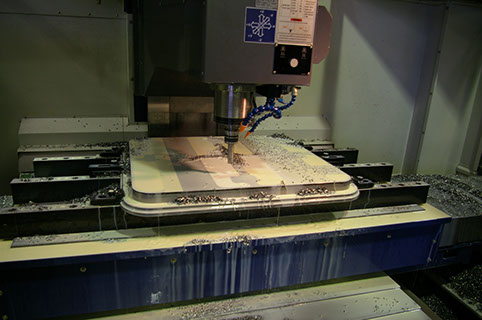

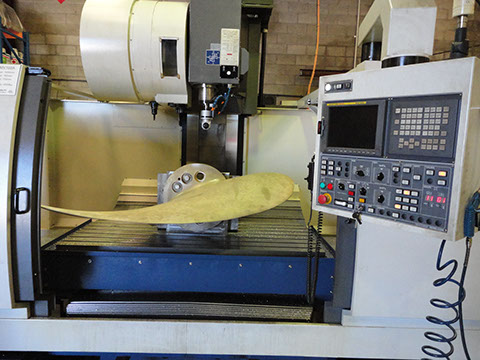

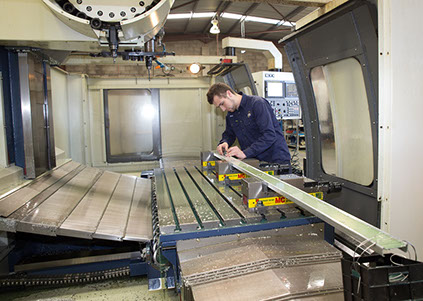

YCM MV168A

Fanuc Robodrill a-T14iFLa


Specification

Values
Table Size X-Axis
1700 mm / 66.93 in
Y-Axis 760 mm / 29.92 in
Feed Axes X-Axis Travel 1658 mm / 65.28 in
Y-Axis Travel 760 mm / 29.92 in
Z-Axis Travel 758 mm / 29.84 in

Specification

Values
Table Size X-Axis
850 mm / 33.46 in
Y-Axis 410 mm / 16.14 in
Feed Axes X-Axis Travel 700 mm / 27.55 in
Y-Axis Travel 400 mm / 15.75 in
Z-Axis Travel 330 mm / 12.99 in

YCM MV106A

Wasino CM-3


Specification

Values
Table Size X-Axis
1120 mm / 44.09 in
Y-Axis 600 mm / 23.62 in
Feed Axes X-Axis Travel 1020 mm / 40.16 in
Y-Axis Travel 550 mm / 21.65 in
Z-Axis Travel 550 mm / 21.65 in

Specification

Values
Table Size X-Axis
720 mm / 28.35 in
Y-Axis 330 mm / 12.99 in
Feed Axes X-Axis Travel 700 mm / 27.56 in
Y-Axis Travel 330 mm / 12.99 in
Z-Axis Travel 400 mm / 15.75 in

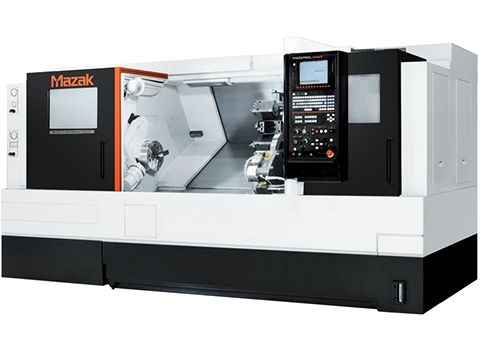

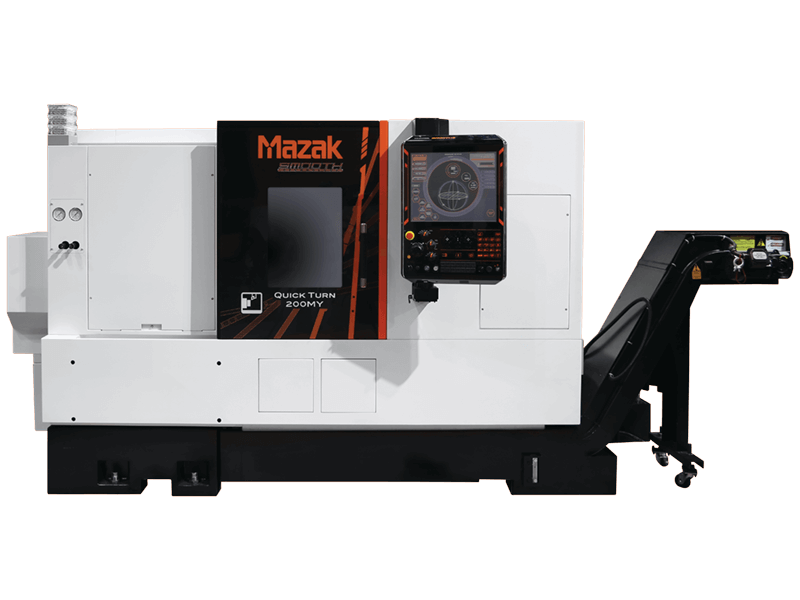

Mazak Quick Turn Smart 300M

Description

Specifications

Video

The QUICK TURN SMART 300M CNC turning centre provides high performance and unsurpassed production value for medium-sized parts. As an (M) configuration, the machine adds milling, drilling and tapping to its turning capability. This gives the machine Multi-Tasking abilities for even shorter part processing times.


Specification

Values
Overalls Maximum Machining Diameter
420 mm / 16.500 in
Maximum Machining Length
1274 mm / 50.160 in
Main Spindle
Chuck Size
254 mm / 10 in
Feed Axes
X-Axis Travel
265 mm / 10.38 in
Z-Axis Travel
1350 mm / 53.13 in

Colchester Tornado 220M

The Tornado 220M three-axis CNC Lathe is designed for high-levels of precision with the flexibility of a 'one hit' setup.



The 22kW motor and Fanuc I Series drive brings power to six stations of the 12 station turret, while the spindle with integral brake and spindle positioning accuracy (0.001°) is fully programmable.



MBF 1000 Magazine Bar Feed incorporating auto loading and work scheduling, designed to increase batch/small part repetition production.


Specification

Values
Overalls Maximum Machining Diameter
290 mm / 11.400 in
Maximum Machining Length
540 mm / 21.250 in
Main Spindle
Chuck Size
254 mm / 10 in
Bar Capacity Diameter
65 mm / 2.56 in

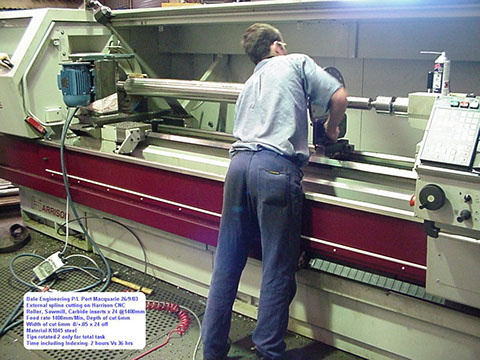

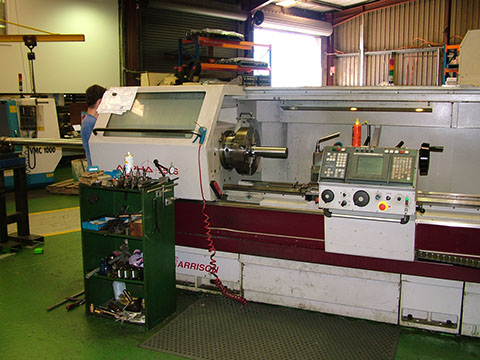

Colchester - Harrison Alpha 550S


Specification

Values
Chuck Size 3 Jaw
305 mm / 12 in
4 Jaw 400 mm / 15.75 in
Stroke X-Axis 575 mm / 22.64 in
Z-Axis 3000 mm / 118.11 in
Maximums OD Turning 550 mm / 21.65 in
Between Centres 3000 mm / 118.11 in

Colchester Tornado 200

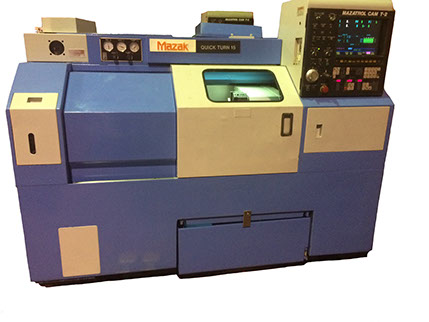

Mazak Quickturn 15N


Specification

Values
Chuck Size
254 mm / 10 in
Stroke X-Axis 435 mm / 17.13 in
Z-Axis 400 mm / 15.75 in
Maximums OD Turning 320 mm / 12.60 in
Between Centres 500 mm / 19.69 in

Specification

Values
Chuck Size
254 mm / 10 in
Stroke X-Axis 320 mm / 12.60 in
Z-Axis 500 mm / 15.75 in
Maximums OD Turning 320 mm / 12.60 in
Between Centres 500 mm / 19.69 in
