Hatches
2
1

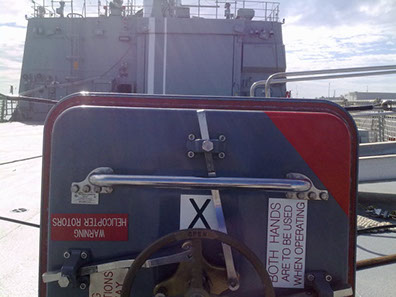

FDH Seal - Non Metallic
Hanger door and hatch seals.
Seal non metallic strips.
Strip, retaining bars, nuts/bolts.
Weather proof, lightweight and ease of installment.
25 years in operation around the world.
Tailored designs for specific applications.
Codified IAW NATO stock numbers.
Manhole Cover
Manufactured to RAN, USN, DNV or Lloyds specification.
Materials: Steel, Stainless Steel, CRES or Aluminium.
Approved gasket grades of materials (water or oil).
Approved coating system as per tank specifications.
Manufactured to MIL-STD-12D and MIL-STD-1689.
Pressure requirements need to be specified.
Manufactured in Australia.

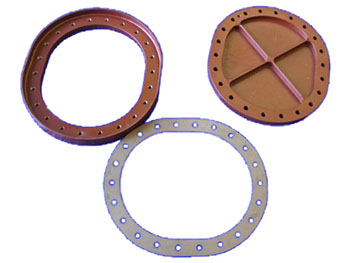

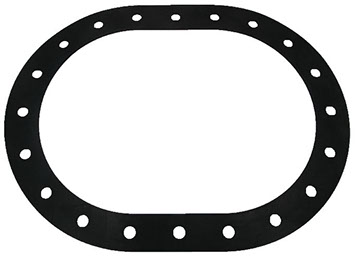

Navy - Gasket - Oval, Manhole Cover
Stockists of a wide range of gasket sheet materials.
Manufactured IAW MIL-Spec requirements.
Materials: Neoprene, EPDM, silicone, PTFE, viton, nitrile and non-asbestos.
Custom cut to customers specifications, based on drawings or samples.
Laser measuring and CAD drafting facility available.
Suitable for: oils, greases, high alkaline, water and gases.

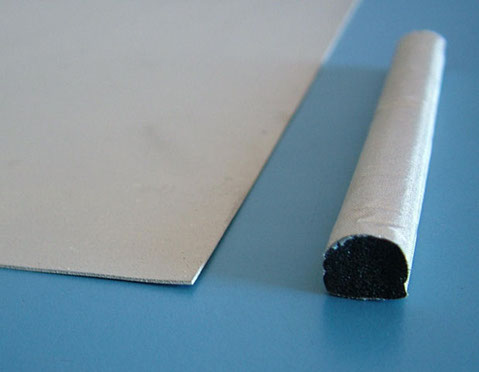

Electrically Conductive Elastomers
EMI Shielding for military applications.
Sheet stock: 15" x 20" x 0.020"
Elastomer type: Silicon.
Filler material: Silver/Copper.
Colour: Tan.
Material Type: MIL-DTL-83528.
D-Shaped RFI Shielding
Conductive surface: Copper Nickel.
Surface Resistivity: 0.005 - 0.010 ohm / lineal inch.
Sizing: 9.5mm (H) x 12.7mm (W).
Allows omni directional compression.
Ideal for surface on groove mount.
High Bond pressure adhesive mount.

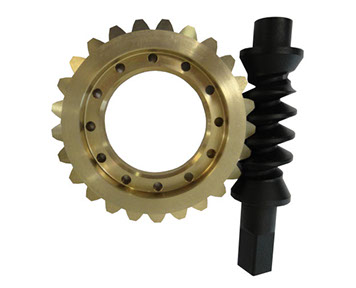

Worm and Worm Wheel
Used where large speed reduction is required between "X" axis.
Single or multi start.
Machine cut, ground or hob cut.
Materials: phosphor bronze, cast iron, steel, nylon and hardened steel.
Quiet and smooth meshing action.
Anti-reversing action of drive train.
Used in: Defence, mining, petro chemical, earth moving and food industries.

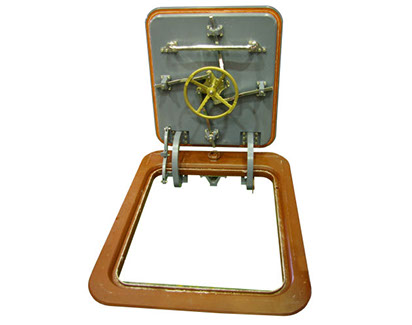

Flight Deck Hatch - Navy
Designed to survive a 10,000kg helicopter crash and torpedo explosion.
Watertight, fuel, fire, shock, vibration and sound resistant.
Spent fuel vent line in way of gutter to RAST overboard discharge system.
22kg operating force (adjustable) and 10kg tangential force.
Over centre safety brace – one person operation.
Human machine interface (HMI).
Drop in coaming manufactured as required to suit available space.

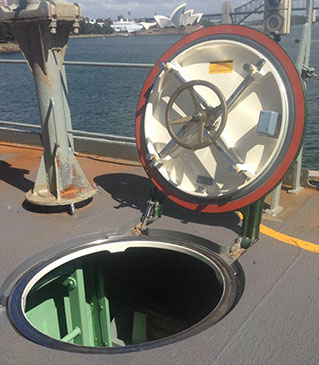

COMCEN Escape Scuttle - RF Shielded - Navy Type
Part No Bale Defence 31800
Profile: Flush Deck-Recessed Fitting and Fixtures
Overall Dimensions: 1000mm (L) x 800mm (W)
Opening Direction: Upwards
Materials: Scuttle – Aluminium, Coaming: to Suit Ship Superstructure, Finish: Weldable Primer
Closing Type: Quick Acting Watertight (QAWT) Locking & Release – Hand Wheel & Dogs
Clear Opening: 610mm – Weight 26kg (Scuttle Assembly)
For use on RFI (Radio Frequency Interference) Sensitive Compartments
Manufactured in Australia.

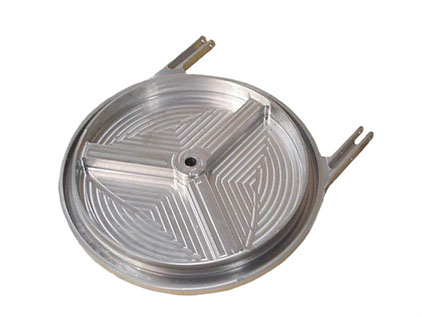

Aluminium Scuttle
The Raised Aluminium Scuttle has been designed and manufactured by Bale Defence Industries for The Royal Australian Navy.
The Aluminium Scuttle is a one piece unit using marine grade aluminium, making it light weight and non-corrosive.
The unit is fully assembled and tested prior to supply.

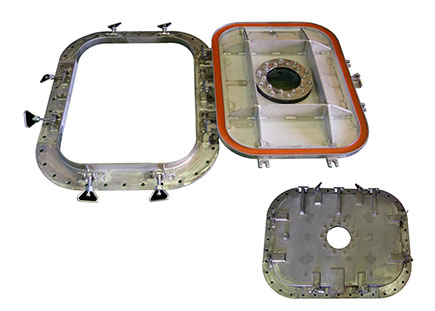

Hatch - Stainless Steel Watertight
- 316 stainless steel construction.
- Mil Spec sealing configuration.
- Eight lock down lugs.
- Viewing port for inspection of contents.
- Safety drain tell tale.
- Security locking device.
- Manufactured in Australia.
