Shipboard Equipment

Home / Products / Shipboard Equipment / Shipboard Equipment Supply / Pumps & Motors

Pumps & Impellers / Motors

Fire Pump - Supply & Repair



Centrifugal pumps for extreme conditions.

Offered in: DIN, ANSI and ISO Standards.

Materials: bronze, Stainless Steel, duplex and cast iron.

Shipboard use for fire, fresh and salt water systems.

Prime mover: diesel, gasoline, electric and hydraulic.

flows up to 18,000 litres / min at 22 bar.

Pumps are to UL/ULC listed and approved to NFPA and CE certification.

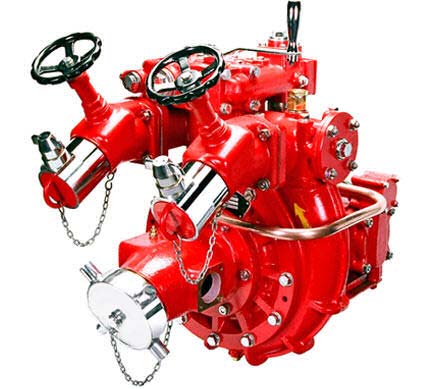

Pump Unit Centrifugal (PUC) Fire Fighting, Typhoon

Part No. Bale Defence 64200-3



2270 litres per minute at 7 bar at the nozzles.

Gunmetal construction.

Automatic primatic reciprocating priming system.

Integral pressure regulating mechanism for safety relief.

Inbuilt by pass loop to recirculate fluid in case of blockage.

Inlet 100mm (4”) and 2 outlet connections @ 64mm.

Quick fire fighting fluid delivery at 3m head.

Self priming from a suction head of 3m.

Captive dust caps fitted on each.

Low drain point access to full drain pump.

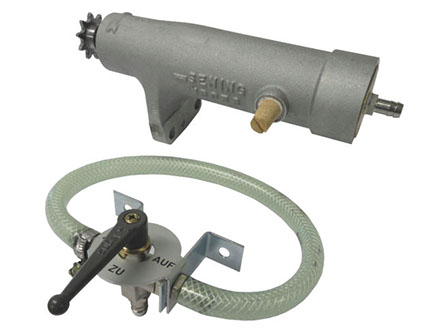

Pneumatic Motor - Navy



Manufactured by F.A. Sening - Germany.

Used in marine loading transfers.

Aluminium / stainless steel construction.

Helicopter refuelling applications on board.

C/W hose and shut off valve.

Codified with NATO stock number.

Spare parts readily available.



Hydraulic Motors - Navy



Gear, vane, radial, GE Rotor and piston motors

Overhaul, test and certify

Reverse engineer obsolete components

Redesign components to improve service life

Uses – steering, stabalizers, valve actuation, thrusters, winches and lifting equipment

NSN codification data to OEM Part No

System designer to determine suitability of motors.

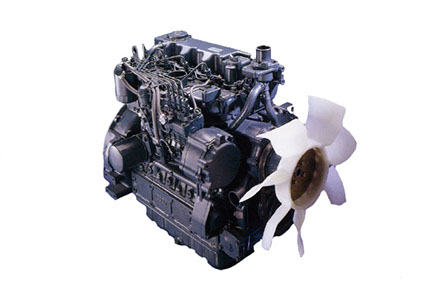

Kubota Engine Model V3300T-SAE (Turbo)



4 cylinders, 3318cc displacement – diesel.

Output: kW (Hp) Intermediate 61.9 @ 2600 rpm, continuous 53.8 (72.1) @ 2600 rpm.

Direction of rotation: counter clockwise from flywheel side.

Cooling system: water cooling with pump.

Starter: 12v – 2.5kW and spring starter.

Fuel: ADF Diesel.

Weight: 617 lbs (280kg).

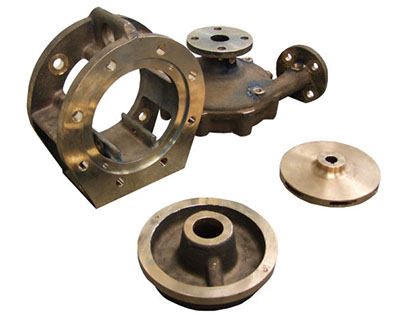

Pump Centrifugal – Supply, Overhaul, Test and Report



In accordance with RAN, ABR’s, TRS’s and IMS Technical publications.

Through life support of OEM components including pump, motor and seals.

Certified balancing of electrical and mechanical components.

Tested to US or DIN power sources.

Onboard mechanical and electrical systems analysis.

Recognised Navy quality repair facility.

Full documentation of clearances as per RAN specifications.

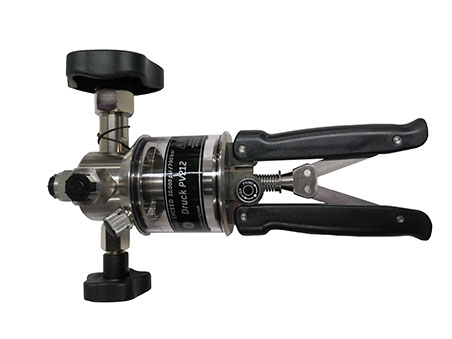

Hydraulic Hand Pump

NSN 4320-99-679-9605



Hydraulic Pressure up to 10,000 PSI

Compatible with many different liquids

Large Transparent 100cc capacity reservoir

Quick priming and pressure generation

Controlled pressure release and adjustment

High Pressure / Priming selector

Lightweight / Easy to use / Calibrating pressure use

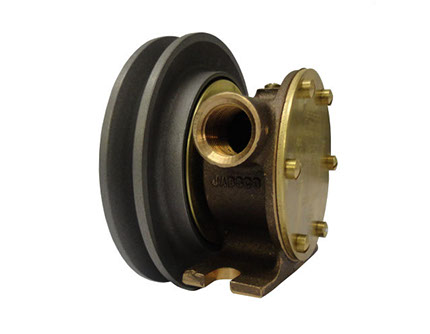

Pump - Raw Water



Bronze flexable impeller pedestal pumps.

Constructed from bronze,stainless steel and neoprene impeller.

Self primingfrom dry up to 2.4m, will not airlock.

Tolerates abrasive wear.

Pumps in either direction.

Spare parts or complete rebuild kits readily available.

Used for engine cooling, bilge, fresh or waste water handling.

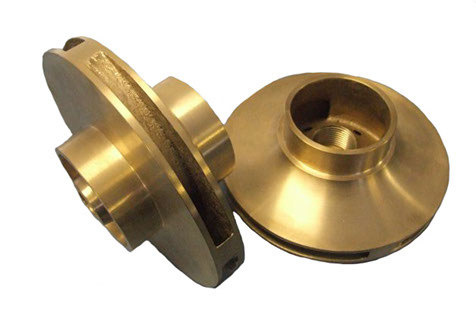

Impeller and Pump Components



Compositions: aluminium bronze, copper nickel and gun metal.

Impellers, bearings, wear rings, shaft sleeves and throat bushes.

Manufactured to RAN, VG and US Navy drawings.

Balancing and test reports supplied.

Support for all current model pumps.

Single or multi stage configurations.

Full pump overhaul and test facility.

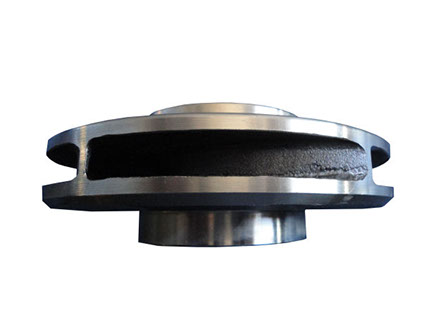

Navy Impeller



Impeller pump centrifugal.

Balanced report supplied.

Manufactured to military specifications.

Other pump running components available if required.

Extremely wide range and sizes of impellers available.

Capabilities from 50 to 4000 gallons per minute.

Manufactured in Australia.

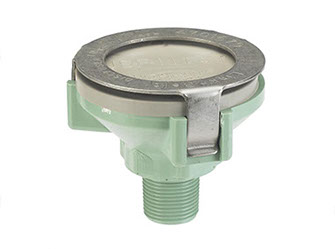

Diffuser Nozzle CHT



Used in applications where high solids are concentrated in aerated liquids.

Movable disc inserted between diffuser housing and S/S retaining ring.

Disc shaped check valve seats on diffuser body when airflow is interrupted.

Disc rises and air is permitted to pass around entire periphery.

Nozzle size: 13/32.

Tread size: ¾ NPT.

Material: ABS Housing, Stainless Steel Retaining Ring and PVC Movable Disc.
