Plugs & Seals
1
2
3

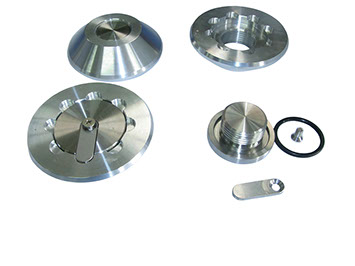

Docking Plug – Patrol Boats, Barges, Landing Craft, Work Boats
Materials: Aluminium – Steel – Stainless Steel – CuNi – Monel.
Manufactured IAW Society Classification.
Certified master gauges supplied to ensure interchangeability.
Metris or imperial thread systems.
Made in Australia.
Sizes – 25mm to 100mm.
Material certification supplied.
Sounding Plug Navy
Manufactured to NAVSEA, MIL or DIN specifications.
Materials: bronze, gunmetal, stainless steel, CuNi or aluminium.
Sizes: 1¼” to 4” (32mm to 100mm).
Body and seal supplied if required.
Thread: NPT, BSPP or metric.
Manufactured in Australia.
Ex stock Australia.

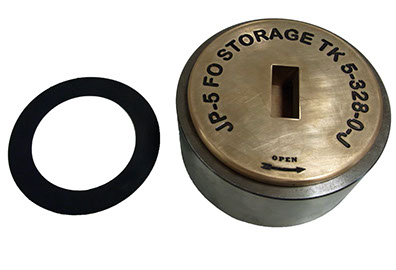

Sounding Tube Cap
Used to take measurements of fluid in the tanks.
Sizes: 1 ½” to 2 ½”.
Materials: steel / stainless steel and bronze plug.
Square or rectangular drives and handle if required.
MIL Spec drawing: 1385848.
Engraved as per requirements.
Infill red or black enamel paint.

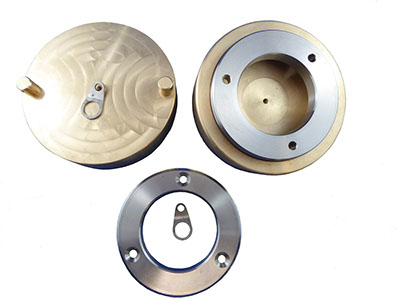

Navy Cap Assembly M24235-11-01
Cap assembly - plain.
Provision for weather deck stuffing tube interface.
Prevents the leakage of liquids or gases through opening.
Body style - short.
Symbol 1853.
Comes with: Gaskets, Packing, Nut, Washer(s), Bushing, LAP.
Materials: Bronze, Stainless Steel 316.

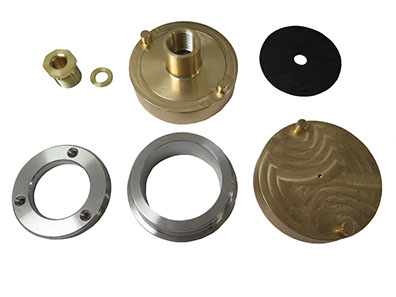

Navy Weather Deck Stuffing Tube M24235-11-02
Specifically designed to pass electrical cable or tube through a continuous structure.
Prevents the leakage of liquids or gases through opening.
Provision for packing
Symbol 996.
Comes with: Gaskets, Packing, Nut, Washer(s), Bushing, LAP.
Materials: Bronze, Stainless Steel 316

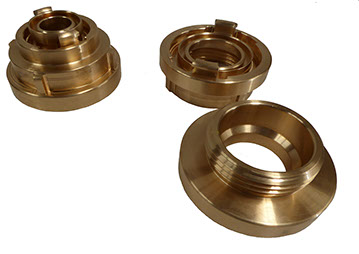

Navy Storz Fitting to NSWFB/MFB thread Bronze
Storz interface with various State Fire Department requirements.
Threads, Adaptors, Reducers and Couplings as required.
Manufactured in Bronze, Aluminium, Stainless Steel, CuNi 90/10 – 70/30.
Seals in black nitrate, viton or EPPM gaskets.
Thread forms: male, female, hosetail, BSP, NPT and DIN metric.
Working pressure to 16 bar.
Manufactured in Australia

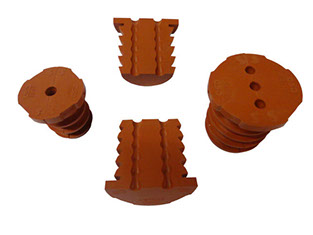

Plug Seal Penetrating – Multi Pipe Transits
Pipe diameters (mm) 5-12 to 160-250.
Configuration: blind, 1, 2, 3 and 4 cable entry.
Provides fire safe and gas / water tight seals.
Excellent weathering properties, UV and ozone long term behaviour.
Wide temperature range -50°C to 180°C.
Uses: military, shipbuilding, petrochemical and offshore oil refinery.
Tested to IMO Resolution A7541(18) Fire Class AO-A60 MED-V-5067(DNV).

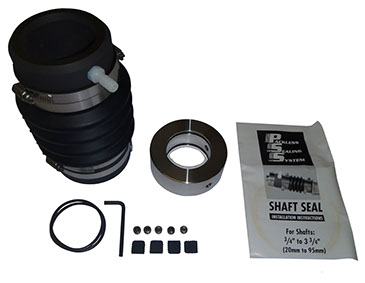

PSS Seal Kit
Sizes from ¾” to 8” (20mm to 205mm).
Mechanical face seal – rotating stainless steel rotor on stationary carbon face.
Eliminates maintenance, adjustments and costs associated with traditional packing.
100% watertight – eliminates water in bilge.
Zero wear on propeller shaft.
PSS shaft seal can be readily retrofitted to existing shafting.
Certified by Bureau Veritas, ABS and RINA.

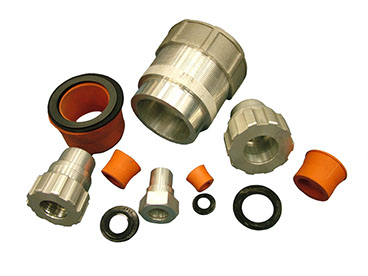

Penetrator Stuffing Tube (Type 64)
Available in steel, stainless steel, CuNi 70/30, CuNi 90/10 or aluminium.
Sizes: 6mm to 75mm. Available in both metric or imperial.
Packing available in neoprene or silicon.
Range of grommets to suit various pipe diameters.
C/W tube body, cap, washers and packing assembly.
Compartments remain watertight.
Packing assemblies are Mil-S-1962

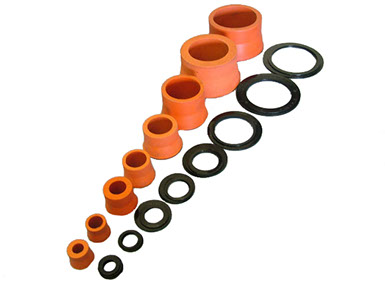

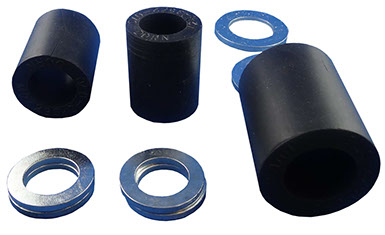

Packing Assembly Stuffing Tube - Mil-S-19622 Silicon
Consisting of 1) bushing 2) washer slip 3) washer retaining.
Sizing: .187” (4.7mm) to 2.700” (6.85mm).
Varying grommet ID’s to suit stuffing tube assemblies.
Uses: shipboard electrical cables.
Shock tested to MIL-S-901 (high impact).
Tolerances IAW FED-STD-H28/7.
Also available in neoprene
Plug Seal Penetrating – Multi Pipe Transits
Pipe diameters (mm) 5-12 to 160-250.
Configuration: blind, 1, 2, 3 and 4 cable entry.
Provides fire safe and gas / water tight seals.
Excellent weathering properties, UV and ozone long term behaviour.
Wide temperature range -50°C to 180°C.
Uses: military, shipbuilding, petrochemical and offshore oil refinery.
Tested to IMO Resolution A7541(18) Fire Class AO-A60 MED-V-5067(DNV).
Plug Seal Penetrating – Multi Pipe Transits
Pipe diameters (mm) 5-12 to 160-250.
Configuration: blind, 1, 2, 3 and 4 cable entry.
Provides fire safe and gas / water tight seals.
Excellent weathering properties, UV and ozone long term behaviour.
Wide temperature range -50°C to 180°C.
Uses: military, shipbuilding, petrochemical and offshore oil refinery.
Tested to IMO Resolution A7541(18) Fire Class AO-A60 MED-V-5067(DNV).

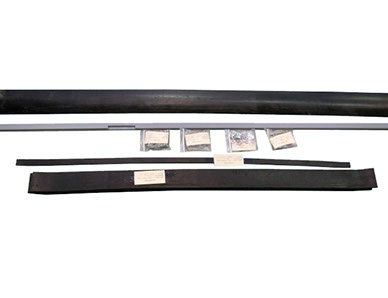

Seal, Non-Metallic
Available in a wide range of sizes, thickness and widths.
Materials: Rubber, telfon, ceramic, non-asbestos, fibre and leather.
Metric or imperial sizes.
Gaskets manufactured as required.
Military, commercial, mining and marine uses.
Manufactured IAW OEM specifications.

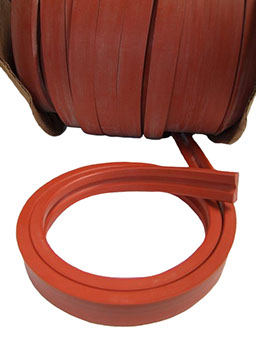

Rubber, Silicone Strip
ZZ-R-765 Class 2B Grade 60 (A-A-59588 supersedes ZZ-R-765).
650 psi tensile.
High temperature, low compression sets.
80º to 437º (F) / -62º to 225º (C).
Uses: dry heat, some petroleum oils or moderate water resistance.
Recommended for: fire resistant hydraulic fluids, ozone, aging and weather resistance.
Not recommended for: ketones, acids, silicone oils and auto/aircraft brake fluid

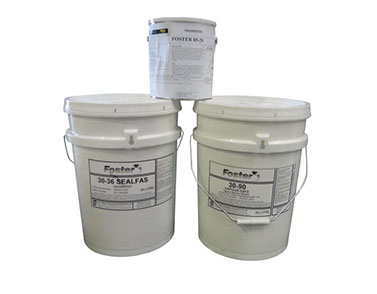

Adhesive – Liquid and Sealing Compound
Adhesive liquid to MIL-A-3316CL2 Grade A.
Sealing compound to MIL-PRF-19565C Type II.
85-20: Spark Fas adhesive, non-flammable quick setting.
30-36: white in colour, fire resistant, tough, washable and abrasion resistant.
30-90: vapour safe mastic is fire resistant.
Provides advanced coating solutions for marine and industry.
Presents a nice white finish and will not discolour with age.

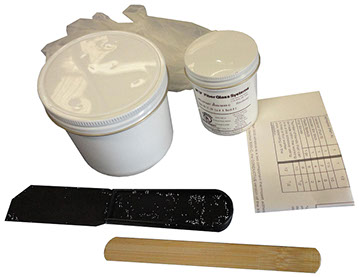

Fibreglass Adhesive Kit – 14oz
Two component system (parts A and B).
Used for joining reinforced epoxy pipe systems.
Sets in 30-40 minutes.
Size of Application: 1” to 36” diameter.
No corrosion in joints to 135°C.
Cost Saving: no hot work, sentries or specialist welders required.
Approvals: RAN, USN, ABS and USCG.
