Marine Furnishings

Home /  Products / Marine Furnishings / Toilets

Toilets / Commodes / Water Closets



Stainless Steel Toilet



Material: 316 Stainless steel

Cast Stainless steel "S" or "P" traps incorporated into build.

Bulkhead mounted.

Satin finish external, matt satin finish internal.

Inlet, key seal and outlet position as required.

Rear concealed outlet.

Designed for shipboard use.



Marine Plumbing - Toilet Systems



Bale Defence Industries supply marine toilet systems that can be tailor made to suit any craft - from pleasure boats to the largest cruise liners.



For strength and long service life, stainless steel pedestals and bowls are unsurpassed, and are maintenance free and easy to clean.



Combined with a vacuum system they provide the most reliable, hygienic and cost effective waste product collection system.



Waste can be held in a collection tank for transfer on shore, or treated in an onboard Sewerage Treatment Plant for discharge overboard.

Wall Mounted Urinal 316 Stainless Steel

Fitted To ANZAC Class Ships



Specifications:

Body: 316 Stainless Steel

Dimensions:

  • Overall height 480mm
  • Overall depth 270mm
  • Overall width 398mm
  • Urinal trough height 120mm
  • Drain hole 1 1/2" BSP thread
  • Water inlet fitting 3/4" BSP thread
  • Mounting method 316 Stainless steel bracket -Included
  • ANZAC drawing number 1043

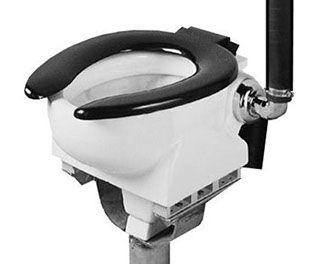

Navy Standard, Shock Mounted - Deck

NSN: 4510-01-378-3163

Part No. BDI 50052



US Navy approved

Deck mounted

Shock certified

Vibration qualified

Complete with fixtures inc. shock mounts

Flushing valve (salt/fresh water)

Heavy duty open front seat

Navsea installation drawings









Navy Standard, Shock Mounted - Bulkhead

NSN: 4510-01-515-8516

Part No. BDI 50053



US Navy approved

Bulkhead mounted

Shock certified

Vibration qualified

Complete with fixtures inc. shock mounts

Flushing valve (salt/fresh water)

Heavy duty open front seat





Navy Toilet Parts



P' bends, 'S' bends, elbows, seats, O-Rings and seals.

Cistern valves, dual and single flush.

Inlet valves, bottom and side entry.

Repair kits, seating washers.

Plungers and caps, cistern pins.

Buttons, flanges and stop plugs.
