Tables

Home /  Products / Marine Furnishings / Tables

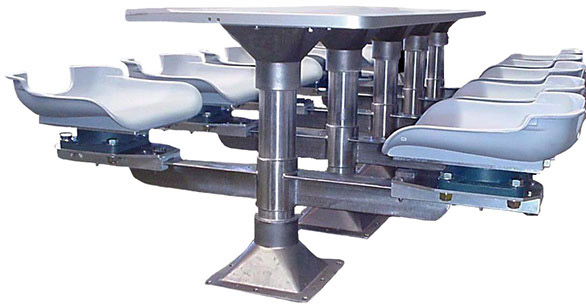

Table Crew Mess - 1 to 10 Personnel

Bale Defence Industries ship cafeteria marine table and seating conforms to MIL-SPEC-F-902 and as per NAVSEA drawing No: 804-1749104 and is one product line of our marine grade furniture built with a reputation for quality and service.



Functional Description

The Assemblies are manufactured in a modular format for ease of installation and relocation. Structurally designed to suit the most demanding environments. Major components are from 316 stainless steel, marine grade aluminium or composite materials. Tabletops are manufactured from lightweight aluminium honeycomb with laminate tops.



Seats are rotatable to 360 degrees, retractable and position lockable when not in use. Can be adaptable for other uses including, office, computer and general workstation applications. Optional materials can be supplied to suit individual requirements. Easily adaptable to false decking and therefore reducing installation costs. Maintenance free components, that reduce man-hour preventive servicing of equipment. Units exceed Health Authorities requirements and specifications. Offers high load bearing capabilities for use in other fields of specialized operations. Tabletops to DNV certification for surface materials with low flame-spread characteristics and conforms to AS/NZS ISO 9002-1994. Interior design/habitability can be offered as a service to assist in your project including layout, colour co-ordination and AutoCAD 3D technical drafting.





Specifications:

Name: Table crew mess: 1-10 Man

Dimensions:

  • L 1200mm x W700mm (1-4 Man)
  • L 1800mm x W700mm (3-6 Man)
  • L 3000mm x W700mm (5-10 Man)

Height: 735mm (or to specified height)

Weight: 4 seat = 152 Kg





Materials:

  • 316 Stainless steel-Pedestal
  • Moulded composite seat
  • Aluminium honeycomb tabletop
  • Aluminium slides & nylon ways



Ship / AMCO Computer Table

Computer table and seats – modular to suit existing on board structures.

316 stainless steel, aluminium and thermoplastic construction.

Swivel seats, retractable base and removable seat covers.

Lexan table top (removable).

Colour: made to operational requirements.

Manufactured IAW Mil-Spec-F902.

Various configurations available to suit ship requirements.



Shipboard Conference Table

Bale Defence Industries conference marine table conforms to MIL-SPEC-F-902 and as per NAVSEA drawing No: 804-1749104 which is one product line of our marine grade furniture built with a reputation for quality and service.



Functional Description

The Assemblies are manufactured in a modular format for ease of installation and relocation. Structurally designed to suit the most demanding environments. Major components are from 316 stainless steel and marine grade aluminium. Tabletops are manufactured from lightweight aluminium honeycomb with laminate tops.



Tables can be adaptable for other uses including, office, computer and general workstation applications. Optional materials can be supplied to suit individual requirements. Easily adaptable to false decking and therefore reducing installation costs. Maintenance free components, that reduce man-hour preventive servicing of equipment. Units exceed Health Authorities requirements and specifications. Offers high load bearing capabilities for use in other fields of specialized operations. Tabletops to DNV certification for surface materials with low flame-spread characteristics and conforms to AS/NZS ISO 9001:2000. Interior design/habitability can be offered as a service to assist in your project including layout, colour co-ordination and AutoCAD 3D technical drafting.



Specifications

Name: Table, Conference

Dimensions:                                                                            Materials:

  • Length: 1900mm Nominal                                              - 316 Stainless steel-Pedestal
  • Width: 900mm Nominal                                                 - Aluminium honeycomb tabletop
  • Height: 750mm plus false floor (or to specific height)
  • Weight: 80kg
