Pipe Fittings

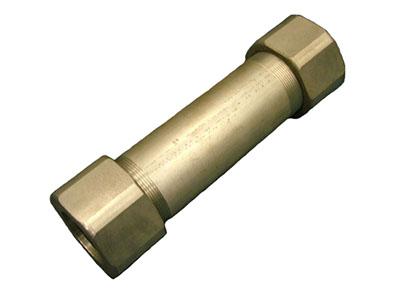

Bulkhead / Deck Compression Coupling - Double



Manufactured in steel, 316 stainless steel, CuNi 70/30, CuNi 90/10 or aluminium.

Sizes: 6mm to 100mm. Available in both metric or imperial.

C/W compression nuts, washers and silicon seals.

Double nut design joins pipes from both sides of bulkhead.

Watertight integrity economically achieved.

Quick turn around times for system maintenance.

Manufactured in Australia IAW Buships 545-1856518 and 810-2145801

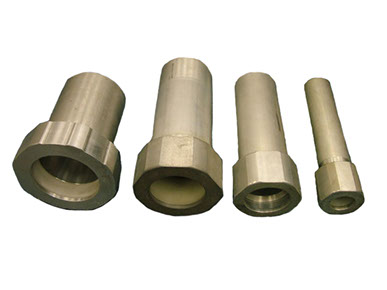

Bulkhead / Deck Compression Coupling - Single



Manufactured in steel, 316 stainless steel, CuNi 70/30, CuNi 90/10 or aluminium.

Sizes: 6mm to 100mm. Available in both metric or imperial.

C/W compression nuts, washers and silicon seals.

Single nut design allows pipes to pass through bulkheads with ease.

Watertight integrity economically achieved.

Quick turn around times for system maintenance.

Manufactured in Australia IAW Buships 545-1856518 and 810-2145801.

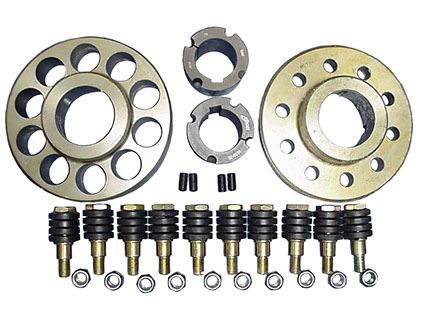

Navy Stainless Steel Cone Ring Coupling



Ships windlass drive coupling unit.



Manufactured from high tensile stainless steel.



Degree of coupling angular and parallel error allowed (.4mm).



Ideal for all weather deck use.



Urethane bushes fitted.



Installation, service and parts list supplied.

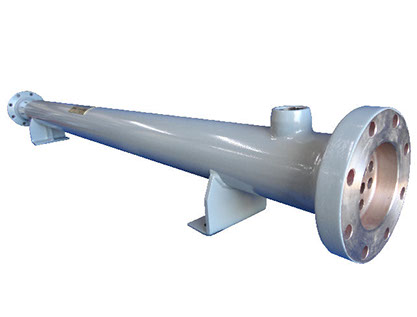

Navy - Sub Cooler Assembly

NSN: 2930-66-148-9296



Designed to remove heat from liquid refrigerant.

Increases system efficiency by cooling the refrigerant after leaving the receiver.

Manufactured IAW MIL-T-22214C.

Shell: steel, tube and tube sheets 90/10 CuNi.

Hydrostatically tested as per RAN specifications.

Manufactured in Australia.

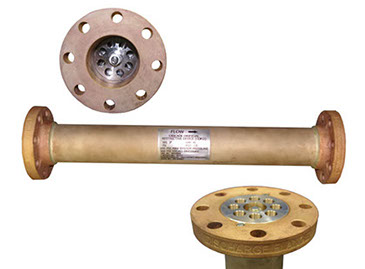

Cascade Orificial Restrictive Device (CORD)



To reduce pressure in naval surface ships shipboard fluid systems.

Manufactured IAW Navsea / VG specifications.

Materials: Bronze Mil-F-20042, CuNi 90/10, and CuNi 70/30.

Hydrographic tuning of the design matrix achievable.

Allowance of 10% extra plates and spacers.

Inlet and outlet flanges engraved.

Maximum system pressure: 200psi.

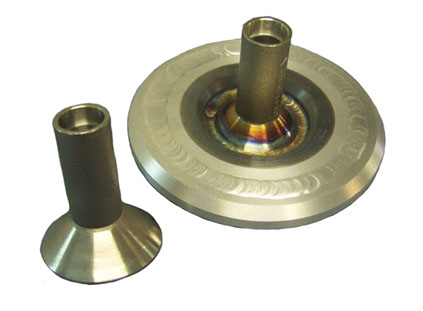

Counter Measure Washdown Nozzle

(Aluminium / Steel / Stainless Steel)



Type SB Washdown Nozzle (USN).

Welded flush with the deck surface.

Inlet sized for welding or brazing ½” IPS.

Explosion bonded tri-metallic transition collar.

Used to attach aluminium super structure to steel decks.

Not susceptible to galvanic corrosion.

Replacement parts kits are available.

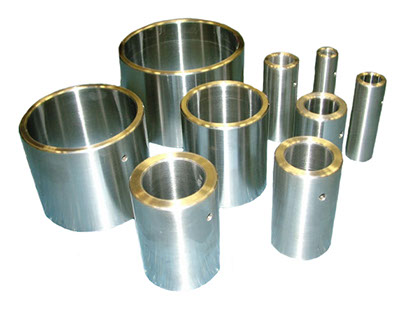

Bulkhead / Deck Penetrator



Manufactured in steel, stainless steel, CuNi 70/30, Cuni 90/10 or aluminium.

Sizes: 12mm to 406mm x 82mm (long). Available in both imperial and metric.

Welded into deck or bulkhead.

Allow pipe and sleeve penetration.

Gas release drilling to allow hermetically sealing at end of task.

Compartments retain watertight integrity.

Manufactured IAW 803 1385866 / Buships 545-1856518

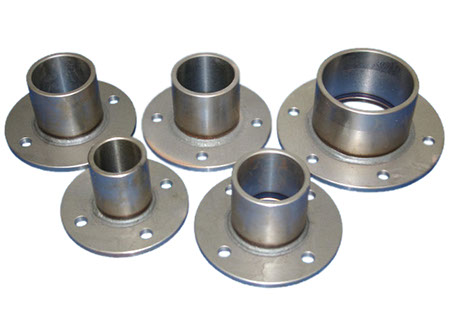

Bulkhead / Deck Penetrator – Flanged



Manufactured in steel, stainless steel, CuNi 70/30, Cuni 90/10 or aluminium.

Sizes: 12mm to 406mm x 82mm (long). Available in both imperial and metric.

For watertight / fire resistant penetrations with no hot works required.

Allow pipe and sleeve penetration.

Gas release drilling to allow hermetically sealing at end of task.

Compartments retain watertight integrity.

Manufactured IAW 803 1385866 / Buships 545-1856518.

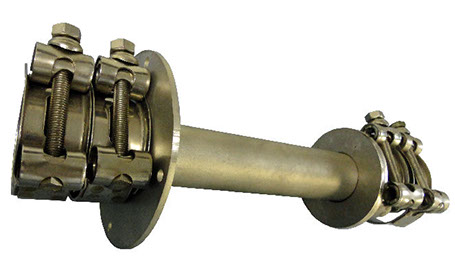

Reefer Penetrator, 3mm to 41mm Tube

Part No. BDI 68700



Penetrator – stuffing box type, insulated refrigeration piping.

Manufactured: IAW A010838.

Outside Diameter Tube Sizes: ⅛” to 1⅝”.

Materials: 316 stainless steel and neoprene.

Reefer Installation Thickness: to be specified on order.

Can be designed for 2 or more capillary tubes.

C/W: moulded caps, fasteners and clams.

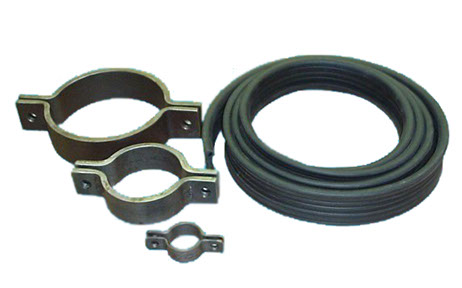

Pipe Hangers and Rubbers

Sizes from ⅜” to 12” (10mm to 300mm) Pipe Runs.

Ship Class: Anzac and US Navy built ships.

Specifications: NAVSEA, DIN and VG Spec.

Manufactured: NAVSEA, DIN and VG Spec.

Materials: Carbon Steel, 316 Stainless Steel and Aluminium.

Surface Finish: Powder Coated, Hot Dipped Galvanised, Electrodeposited Zinc or Primed.

Configuration: Standoffs and ‘A’ Brackets to suit.

Spare Parts: Supplied Individually.

Ordering: NSN, Drawing Number of full description required.

Manufactured in Australia by Bale Engineering Co Pty Ltd.

Pipe and Fittings: Australia’s largest stockist of Mil Spec and DIN Spec Pipe and Fittings available in Carbon Steel, Copper Nickel, Stainless Steel and Aluminium.

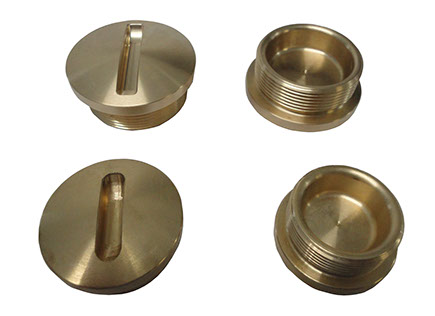

Sounding Plug - Navy



Manufactured to NAVSEA, MIL or DIN specifications.

Materials: bronze, gunmetal, stainless steel, CuNi or aluminium.

Sizes: 1¼” to 4” (32mm to 100mm).

Body and seal supplied if required.

Thread: NPT, BSPP or metric.

Manufactured in Australia.

Ex stock Australia.

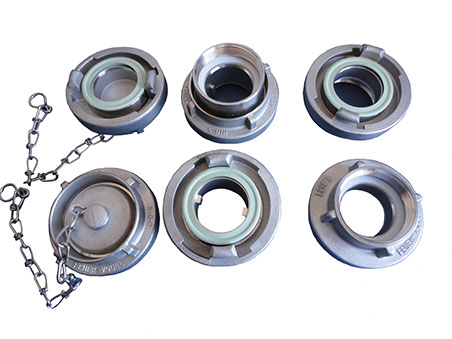

Storz Coupling - SS



Used in military, fire and water related industries.

Available in cast aluminium, forged aluminium, brass and stainless steel.

Storz have no male or female halves.

Specified between the locking lugs and hose end termination.

Sizes: ½” NB to 10” NB to DIN specifications.

Configurations: Storz x hosetail – male – female – lock cap or adaptor.

Seals: black nitrile, viton or EPDM.

Storz Coupling



Manufactured in aluminium, bronze and 316 stainless steel.

Male or female configuration.

Seals in black nitrite, viton or EPPM gaskets.

Thread forms: male, female, hosetail, BSP, NPT and DIN metric.

Working pressure to 16 bar.

Symmetrical quick connection couplings.

Manufactured in Australia.

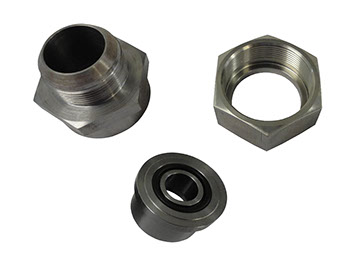

Tail Piece, Adaptor and Union Nut



Sizes 1/8” to 3”.

3000lb and 6000lb pressure rating.

Materials: 304 & 316 stainless steel, monel 400, brass, carbon, steel or titanium.

Excellent vibration resistance and no maintenance.

High pressure sealing applications.

Turbulence free, ‘O’ ring free fit across the seats.

Interchangeable end connections: threaded, socket weld, butt weld ends are interchangeable.

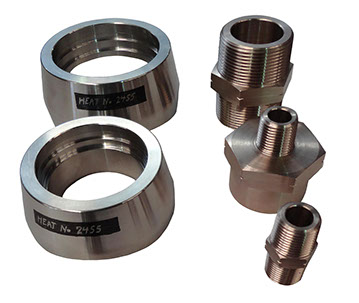

CuNi Fittings - Special, Sockolet



Manufactured IAW drawings and material specifications supplied.

DIN (metric), BS (British Standard) or Mil Spec requirement.

Material: 90-10 CuNi, 70/30 CuNi, 316 SS, aluminium and titanium.

Flanges, buttweld fittings, nipples, couplings and sockets etc.

Pressure Ratings: to 6000lbs.

Sizes: 1/8 to 8 inches.

Manufactured in Australia

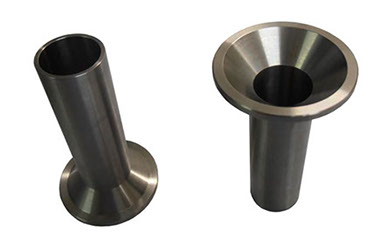

Filler Tube



Manufactured IAW with customer requirements

Materials:  steel, stainless steel, monel, CuNi , aluminium etc

Sizes:  up to 300 mm

CNC machined or fabricated

CFD analysis on various mediums

Prototyping if required

Uses:  military, fuel, oil and gas, food processing
