Marine Furnishings

Home /  Products / Marine Furnishings / Personal Quarters

Berth, Crew, Modular, Locker Under Part No. Bale Defence 10805

Bale Defence Industries bunks are a compact, modular, light weight and maintenance free assembly that can be configured into various ship fits as required whether 1, 2 or 3 high.



Sizes can be tailored to suit the ships requirements as well as provision for modification if needed, in way of HVAC, plumbing or electrical components.

Locker under Berth provides comfortable sleeping accommodation with adequate stowage capacity for personal property with same key locking per unit.

Thermo plastic ways on each draw is to reduce vibration and suppress noise as well as providing a detent at various positions and a mechanical stop to prevent draws from ejecting.



Safety: Approved materials in regard to combustibility, smoke and toxic fume generation, rounded corners on all items and positive locking devices on all closures.



Coatings: Durable, environmentally safe powder coating with a wide range of colors.



Curtain Track: Provision for a heavy-duty curtain roller incorporated within the front extrusion.



Height: Overall 200mm with a 100mm innerspring mattress or up to 300mm with a 200 mattress.



Lighting and Air Conditioning: Fitted either internal or external to the units.



CNC Engineered from marine grade aluminium extrusions in 6063 T5, 6061 T6 and 5083 H321, this advanced design meets the following Military Standards:

  • Mil-PRF-32038; Shipboard Furniture, Fixtures, Fittings Access Criteria.
  • Navsea-803-5959310; Furniture Construction Specifications.
  • Aluminium welding code to AS/NZS 1665:2004.

Bunk Components

Punkah Louvre

Berth Light: No Outlet

Berth Light: with Outlet

EEBD (Emergency Escape Breathing Device) Door

Bunk Air Conditioning Vent

Bunk Fan

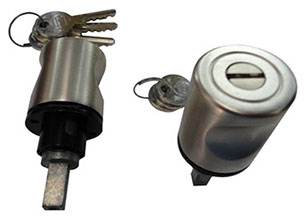

Door Knob, Lockable - ANZAC Class

NSN (Left Hand): 66144-4550

NSN (Right Hand): 66-144-4551

Material: Stainless Steel

Rotatable and Lockable

Material Thickness: 16mm to 26mm

Drive: 7mm square pin

Keyed alike or differently

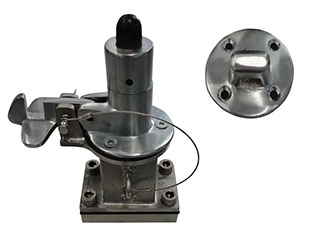

Door Hold Open Assembly - Navy

Consists of body, hook, strike/catch plate and rubber buffer.

Aluminium cast, stainless steel fasteners.

Interface onto – steel, aluminium, stainless steel foundation.

Codified Nato stock number.

Lanyard pin to foundation.

Used throughout the ship (comms, ward etc).

Used on heavy duty doors.
