Fuel Containers

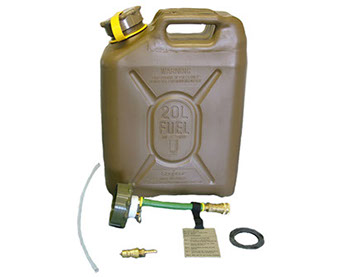

Military Fuel Container (MFC) – 20 litre (Olive Drab)



MFC 20 litre, NSN: 7240-21-899-8270 (as shown).

Adaptor Assembly Suction MFC – 20 litre, NSN: 7310-01-455-3736 (automatic air vent).

Adaptor Assembly Gravity Feed MFC – 20 litre, Part No: 04914.

OBM to MFC fuel line – 2200mm long.

Cap: Mil-C-53109 Military Fuel Container.

Colour identification straps - yellow: diesel, red: gasoline, green: 2 stroke (as shown), black: jet fuel and grey: kerosene.

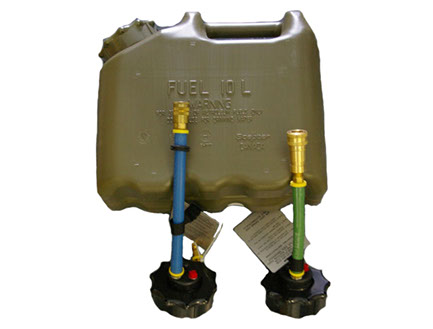

Military Fuel Container (MFC) – 10 litre (Olive Drab)



MFC 10 litre, NSN: 7240-20-001-6513 (as shown).

Adaptor Assembly Suction Feed MFC – 10 litre, NSN: 7310-01-455-3736 (as shown).

Adaptor Assembly Gravity Feed MFC – 10 litre, NSN: 7240-21-912-7162 (as shown).

MFC 20 litre, NSN: 7240-21-899-8270.

Adaptor Assembly Suction MFC – 20 litre, NSN: 7240-21-912-7125.

Adaptor Assembly Gravity Feed MFC – 20 litre, Part No: 04914.

Mil-C-53109 MFC Cap, different colour straps available – yellow: diesel, red: gasoline and green: 2 stroke.

Viton gasket required for gasoline container inside the 26th parallels.
