Shipboard Equipment

Home /  Products / Shipboard Equipment / Shipboard Equipment Supply / Dispensers

Beverage Dispenser

NSN: 7310-15-152-2950



Three bowl x 3 litre, 115 Vac, 60 Hz, 550 Watt.

Bowl and Cover: food grade polycarbonate bowl.

Mixing System: paddle system stirring by Delin Paddles.

Refrigerant Unit: forced air cooled hermetic compressor.

Tap and Cooling System: stainless steel, no drip.

Parameters: 600mm (W) x 43mm (D) x 670mm (H) x 38kg.

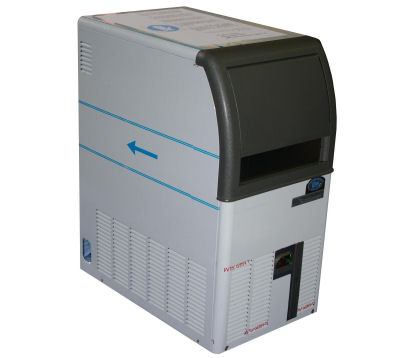

Ice Maker, Cube

NSN: 7310-15-152-2950



Produces slow melting, medium sized ice, hard super-cubes.

Air cooled up to 31kg = 1550 cubes / 24hr.

Bin capacity 14kg.

Parameters:

  - Height: 790mm (without legs)

  - Width: 457mm

  - Depth: 523mm

Power: 7 Kwh.

Litres: 110.

Fuse rating: 13 Amp.

Production: 24hrs.

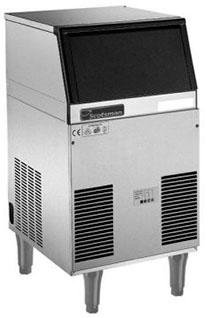

Ice Making Machine, Cube

NSN: 4110-66-142-3845



Automatic Gourmet-Cube Ice Machine.

Air cooled, stainless steel up to 36kg @ 15ºC to 20ºC = 1800 cubes/hour.

Bin capacity 14kg.

Parameters:

  - Height: 790mm (without legs)

  - Width: 457mm

  - Depth: 523mm

  - Weight: 44kg

Power: 10 Kwh.

Water required: 140 litres x 24 hours.

Fuse rating: 10 Amp.

Production: 24hrs.

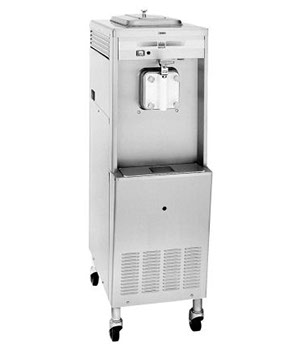

Ice Cream Maker, Soft Serve

NSN: 4110-01-043-0217



Mechanically refrigerated, sea water cooled.

Specification: Mil-I-43705.

440.0 Volts, 60 Hertz.

Floor mounted and wash kit.

Min. 12.0 gallons/hr dispensing.

Parameters:

  - Height: 1520mm

  - Width: 468mm

  - Depth: 685mm

  - Weight: 198kg

Material: Steel - Corrosion Resistant.

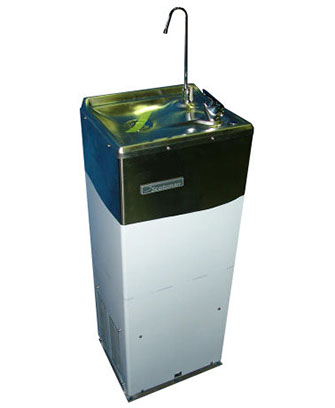

Water Dispenser, Mechanically Cooled

NSN: 4110-66-142-3846



Free standing unit.

Automatic stream regulator.

Mains water.

62 litres/hour @ 10C.

Hygienic hands free operation

Parameters:

  - Height: 1520mm

  - Width: 468mm

  - Depth: 685mm

  - Weight: 198kg



Power: .09 kwh

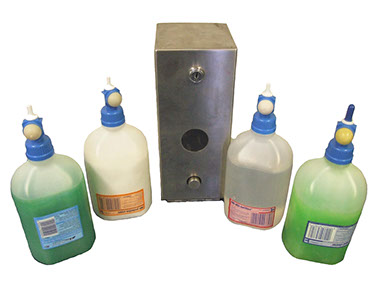

Soap Dispenser Anzac Class

Part No Bale Defence D002



Manufactured from 316 stainless steel.

Lockable - same key fit or individually keyed.

Bulkhead mounted - concealed.

Refiller indicator window.

Hinged front for ease of change out.

Dispenser inserts 700/750ml: hand cleaner, protective cream, skin sanitiser and mild soap.

Parameters: 260mm (H) x 120mm (D) x 108mm (W) x 2kg.
