Deck Fittings

Navy Tie Down Point – Elephant Foot



Fabricated IAW NAVSEA Dwg No. 803-1916300 Rev. M.

Helicopter, aircraft securing and engine run up fittings.

To suit steel deck and aluminium deck ships.

Forged steel or trimetallic transition collar.

Comes with or without drain holes.

Used on naval, commercial and ocean platforms.

Fabrication, welding and inspection IAW MIL-STD-1689.

Ring – D Tie Down + Strap



Cargo/ container / aircraft securing “D” rings

Beaver tail comes with strap weldment

Finish:  mill finish

Parameters:  222 mm (L) x 65 ID x 4.7 kg

Material:   forged steel

WWL:  55,000 lbs – MBS:  110,000 lbs

Welded to deck or hatch cover.

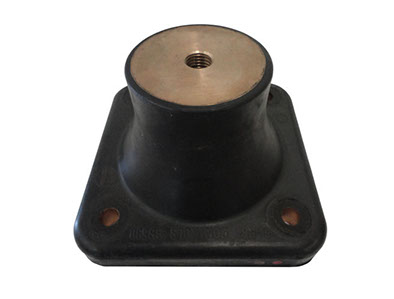

Navy Resilient Mount



Mount Types: base, suspension, bushing, channel, pads and bumpers.

Elimination of vibration and energy absorption.

Protects components and devices from shock and possible destruction.

Components: stainless steel, silicon, neoprene and rubber.

Metric / imperial mounts available in various configurations.

Instrumentation and recording devices are available for diagnostics.

Used in military, machinery, plant and rolling stock etc.

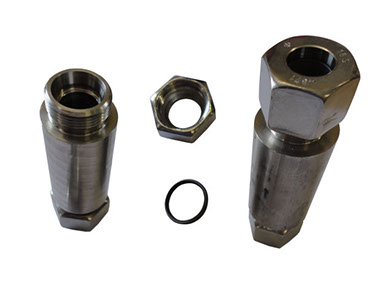

Bulkhead Unions 316 Stainless Steel



Manufactured to ASTM-A-182 F316L.

Weld and bite type union assemblies.

Materials: 316 stainless steel, brass, steel, duplex and aluminium.

Sizes: metric - 4mm to 38mm OD tube and imperial - 3/16” to 2” OD tube.

Provides excellent leak free sealing on HP gas, vacuum, thermal shock etc.

Heat code traceability.

Pressure rating: up to 8000 psi.

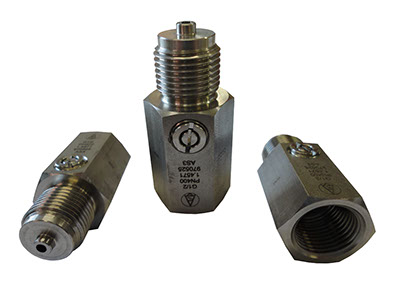

Pressure Damper ½” Stainless Steel



Stainless steel, 400bar, gas.

Brass: 200bar or steel: 600bar.

Dissipates pressure waves.

Lateral setting spindle.

Connections G1/2.

Explosive group: 11A, 11B and 11C.

Parameters: AF 27mm x 60mm (L) x 300g.

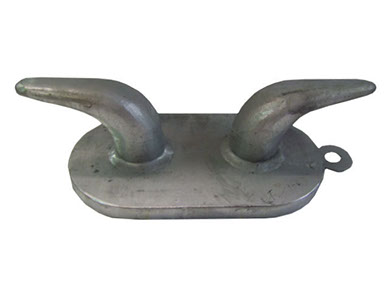

Cleat, Rope, Horn, 14” Navy



Weld horn type.

In accordance with NAVSEA 2276338.

Closed base.

Material: steel ASTM A27 Gr 70-36.

Hot dip galvanised.

Certificate of compliance supplied.

Sizes: 8” to 30”.

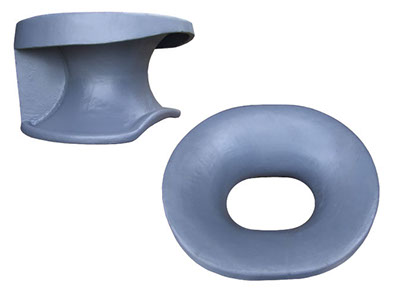

Chock Fairlead



Specification: DIN 81915 Type MC.

Type A & B Single to Panama Rules.

Material: Steel ZG23030-450.

Sizes: A2 to A32 (160mm to 600mm wide).

Single or double chocks available.

Paint: Primed paint.

Mill Test certification supplied.

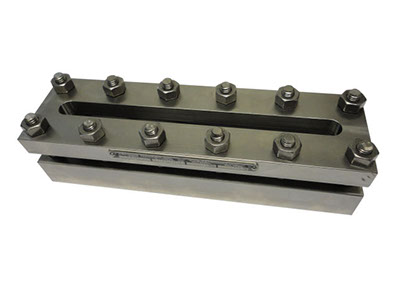

Heavy Duty Sight Glass



For observation directly into tank for liquid level indication.

Weld on unit – lower pad welded directly to tank.

Glass Lens: reflex or transparent – explosion proof illuminator.

Lengths: up to 100mm to 3500mm.

Rectangular, cylindrical or spherical curve.

Materials: stainless steel.

Options: shields (MICA, Kel-F, PFA), scales (inch – mm) and non-frost extension.

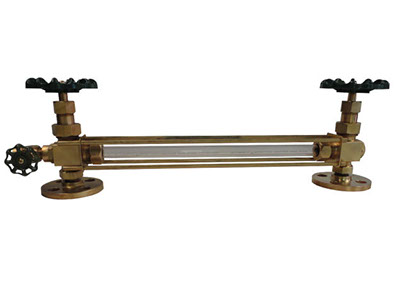

Navy – Sight Glass



Indicator sight, liquid level gauge.

Sizes: ½” an ¾” diameter tube x various lengths.

Materials: Body forged bronze alloy 632M.

Glass: pyrex brand redline, tubular per MIL-G-2695.

Types: 1- non automatic, 2- automatic. A- general, B- shielded.

Flanges: Military or ASA 150# or 300#.

USN and U.S.C.G. approved.
